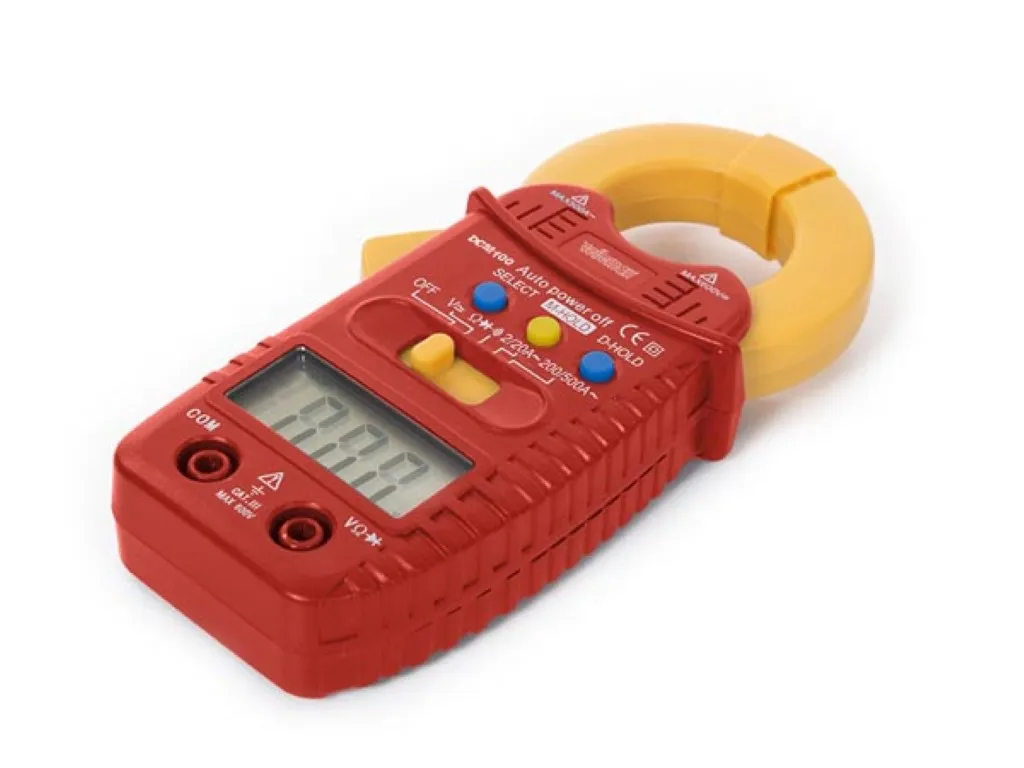

+ Safety: The current clamp measures the current without touching the current-carrying conductor (e.g. wire).+ Easy measurement: During a measurement, there is no need to interrupt the circuit.+ User-friendly: The current clamp is easy to operate and displays measured values on the digital display.+ Versatile: The current clamp measures alternating current, voltage, resistance, diodes and continuity.+ Automatic and manual range setting (0 to 2 A and 20 A to 500 A). Specifications
| Product basic info |
|---|
| Instruction manual languages | Dutch, English, French, German, Polish, Portuguese, Spanish |
| Primary colours | Red |
| Additional colours | Black, Blue, Yellow |
| Depth unit | 24.8 mm |
| Height unit | 131.5 mm |
| Width unit | 61 mm |
| Weight unit | 135 g |
| Material | ABS |
| Physical properties |
|---|
| Display height | 18 mm |
| Display width | 39 mm |
| LED light | |
| Backlight | |
| Maximum digits display | 1999 |
| Electrical data |
|---|
| Overload protection | |
| Lamp type | Led |
| AC current | - 2/20/200/500 A
- basic accuracy:
± (4.0 % of rdg + 10 digits) for 2 A range
± (2.5 % of rdg + 5 digits) for 20 A ~ 500 A range - 1200 A for max. 60 seconds
|
| AC voltage | - 2/20/200/600 V
- basic accuracy:
± (1.5 % of rdg + 3 digits) for 2 V ~ 200 V range
± (1.5 % of rdg + 5 digits) for 600 V range - input impedance: 10 Mohm
- frequency range: 50-60 Hz
- maximum input: 600 V
|
| DC voltage | - 0.2/2/20/200/600 V
- basic accuracy :
± (0.8 % of rdg + 3 digits) for the 0.2 V range
± (1.2 % of reference value + 3 digits) for the 2 V ~ 600 V range - input impedance: 10 Mohm
- maximum input: 600 V
|
| Diode test | |
| Continuity test | |
| True rms | |
| AC current measurements | 2 A, 20 A, 500 A |
| AC voltage measurements | 2 V, 20 V, 200 V, 600 V |
| DC voltage measurements | 2 V, 20 V, 200 mV, 200 V, 600 V |
| Resistance specifications | - 200/2K/20K/200K/2M/20M
- basic accuracy:
± (1.0 % of rdg + 2 digits) for 200 ohm range
± (1.5 % of rdg + 2 digits) for 2 K ~ 2 M range
± (2.0 % of rdg + 3 digits) for 20 M range - overload protection: 15 s max. 250 V (all ranges)
|
| Maximum AC current | 500 A |
| Technical data |
|---|
| Safety standard | EN 61010-1 |
| Safety rating | Cat III / 600 V |
| Automatic power-off function | |
| Pollution degree | 2 |
| Data-hold function | |
| Colour of LEDs | Red, White |
| Set-up options |
|---|
| Alarm sound type | Buzzer |
| Power supply |
|---|
| Battery required | |
| Number of batteries | 3 |
| Input voltage rating VAC range | 0-600 V |
| Battery operated | |
| Battery voltage rating | 4.5 V |
| Input voltage rating VDC range | 0-600 V |
| Low battery indicator | |
| Battery composition | Alkaline |
| Battery IEC size | AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400) |
